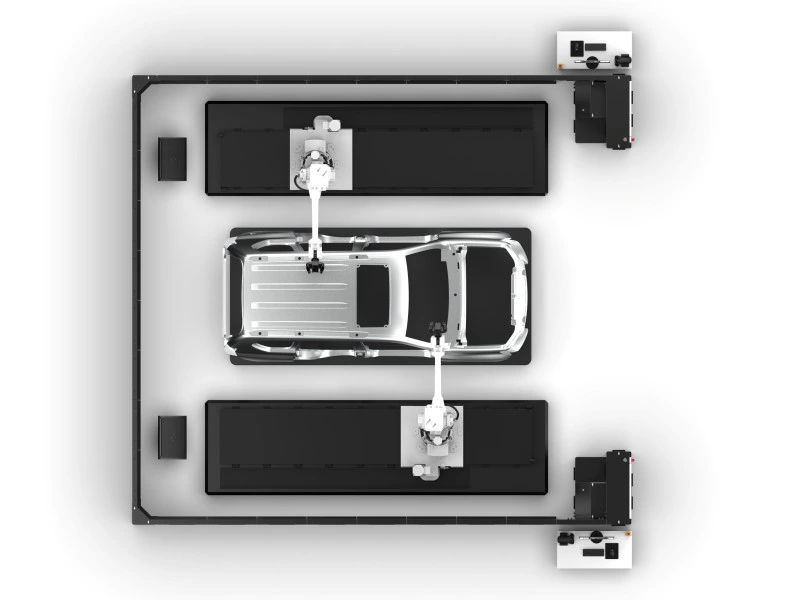

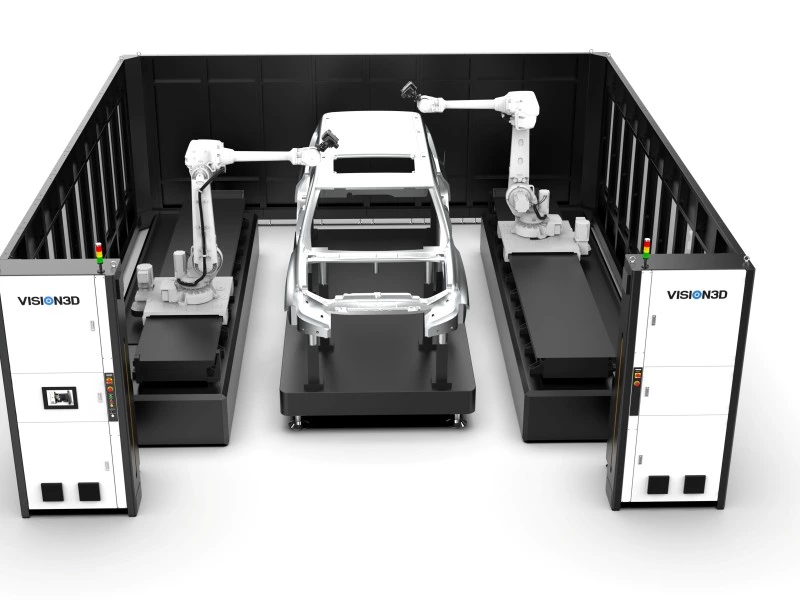

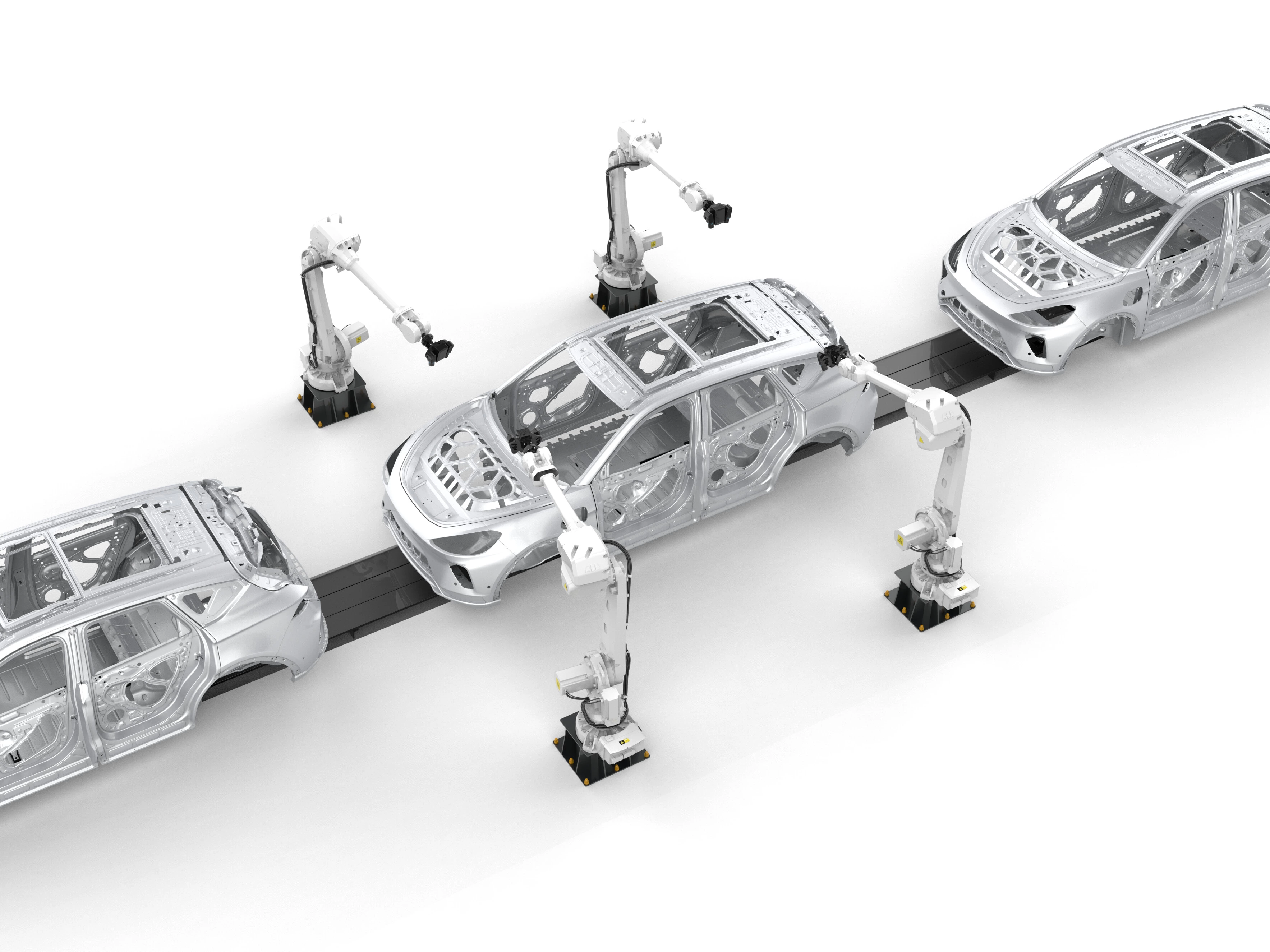

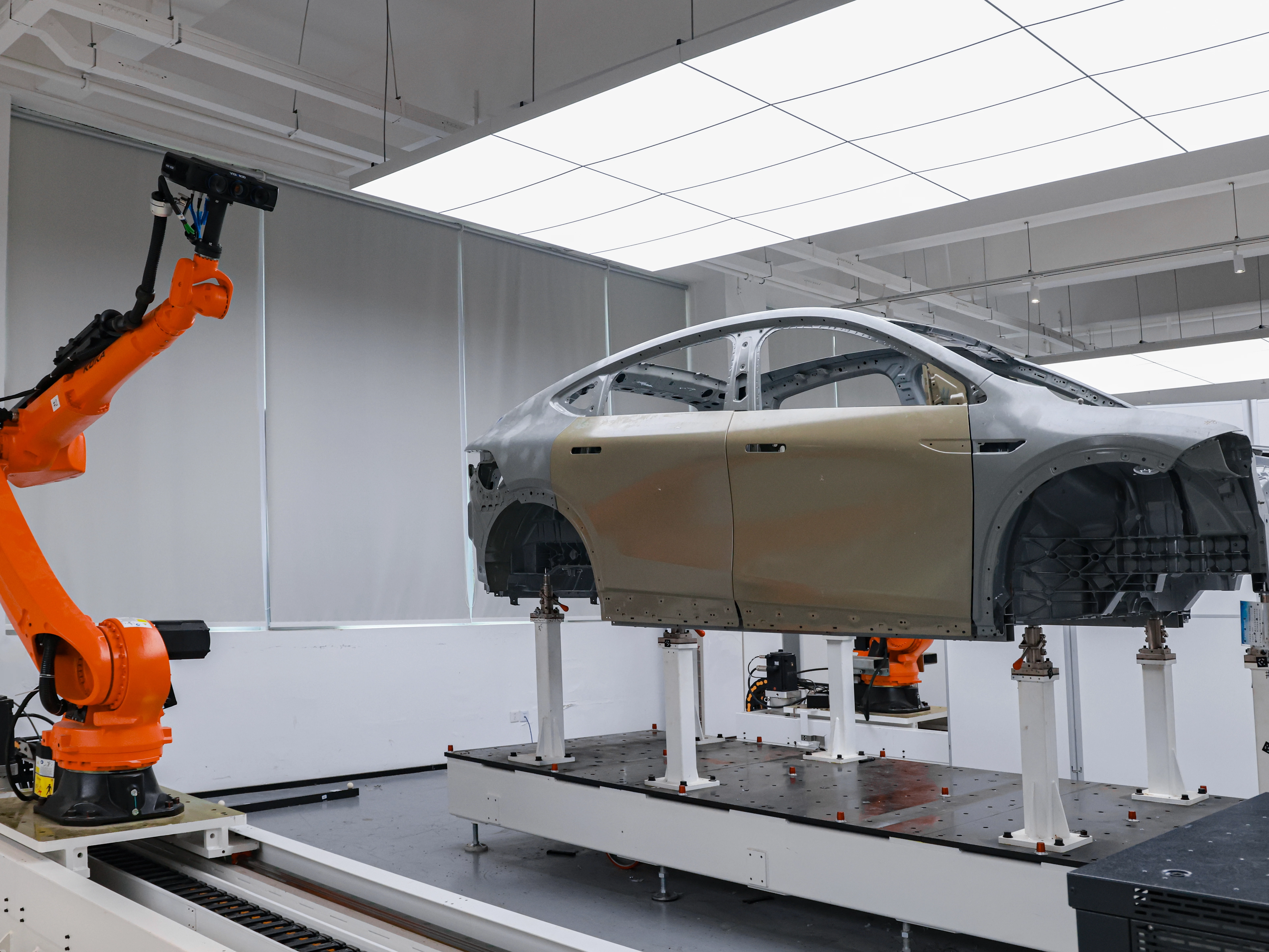

AutoScan 5000 Series

Global Coverage Measurement System for Large-Scale Structural Components

The AutoScan 5000 Series is engineered for large-scale and highly complex structural components, providing an all-in-one solution for automated global measurement and digital inspection. Supporting a maximum part size of 5000 mm, the series offers customizable combinations of key units—including robots, rotary tables, linear tracks, and workstation layouts. This modularity has resulted in four distinct models—AutoScan 5110, 5120, 5210, and 5230—delivering highly adaptable measurement solutions for diverse application scenarios.

High-Performance Modular Design
Scalable Standardized Modules

Core Technical Features

Technical Specifications

Product Specifications	AutoScan 5110	AutoScan 5120	AutoScan 5210	AutoScan 5230
Max. Part Size	Ø 5000mm
Max. Part Weight	Unlimited
Number of Axes	6+1	6×2	（6+1）×2	（6+1）×2
Equipment Dimensions	5200×8600×2200mm	9200×8600×2200mm	7600×8600×2200mm	14800×8600×2200mm
Opening Width	4000mm	3900+3900mm	5600mm	4000+4400+4000mm
Total System Weight	4500kg	6000kg	6500kg	8500kg
Power Supply	AC 380V (Three-phase), 50/60Hz
Installation Method	Floor Bolt Mounting
Loading Method	Crane / Forklift
Compatible Sensors	PowerScan Pro Full Series
