Core Technical Features

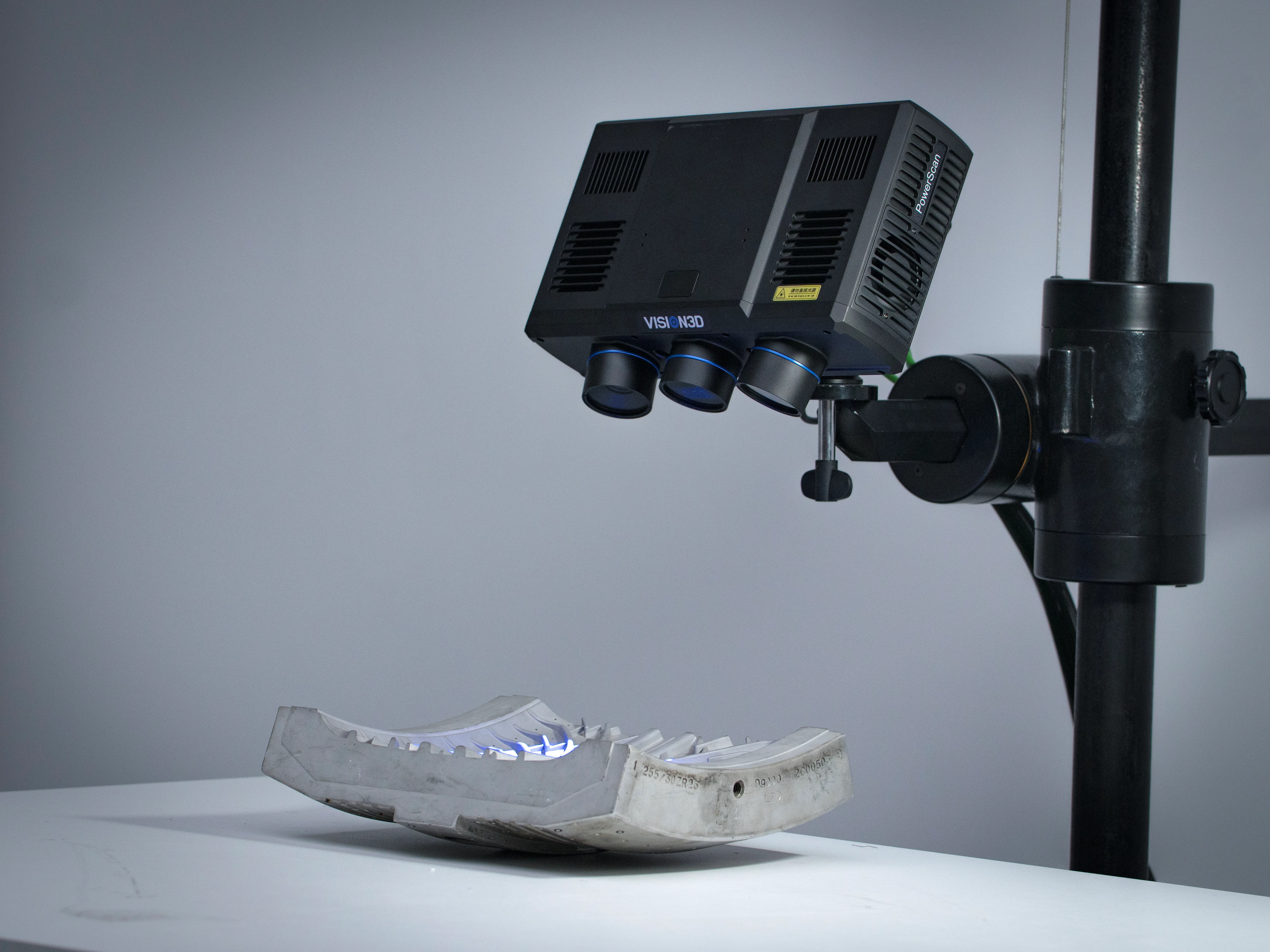

With a lightning-fast single-scan speed of just 0.2 seconds, it is purpose-built for high-cycle online inspection, capturing every geometric detail with absolute precision.

Why Choose PowerScan 5M Pro ?

Ultra-High-Speed Scanning

Advanced Architecture: Leveraging a cutting-edge GPU parallel computing architecture combined with Gigabit Ethernet data transmission.

Rapid Acquisition: Achieves a single-frame scan time of ≤0.2s.

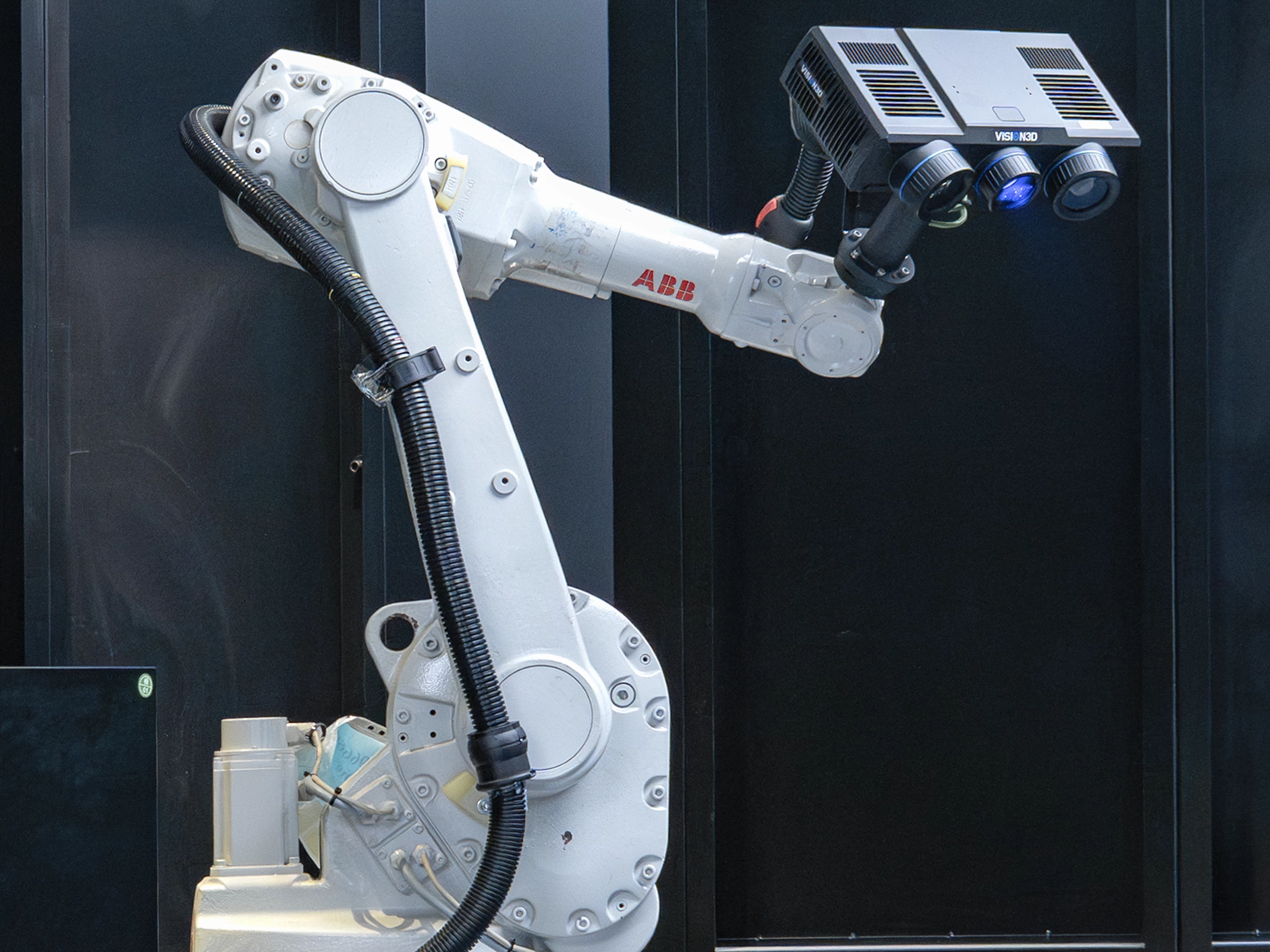

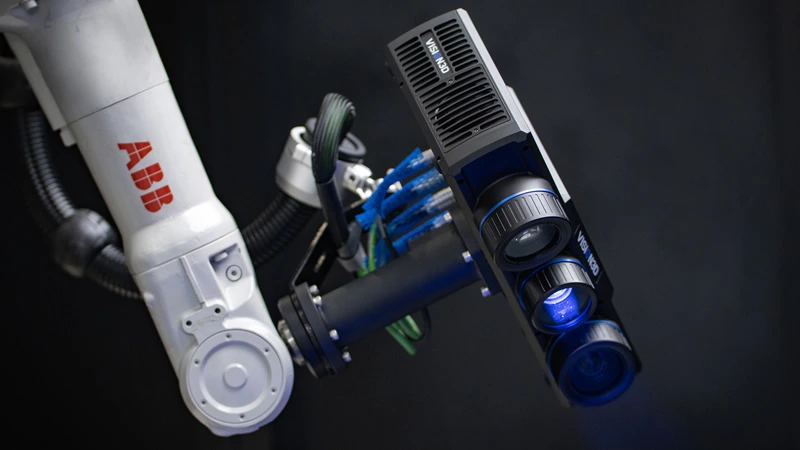

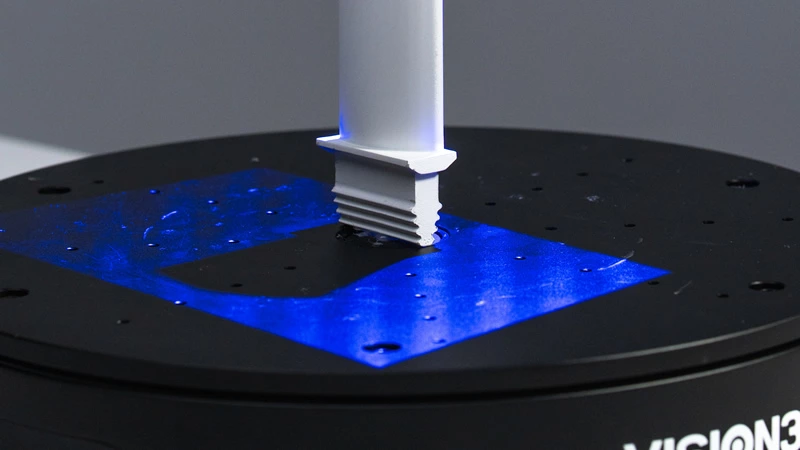

High-Cadence Inspection: Seamlessly integrates with robotic arms or rotary stages to enable ultra-high-cycle measurement and automated inspection.

PowerScan 5M Pro

Ultra-High Precision Measurement

Metrology-Grade Accuracy: Built with high-resolution cameras and a robust hardware structure to achieve a single-scan accuracy of 0.015mm.

Intricate Detail Capture: Delivers high-resolution acquisition of fine surface features, providing reliable and comprehensive data for downstream analysis.

PowerScan 5M Pro

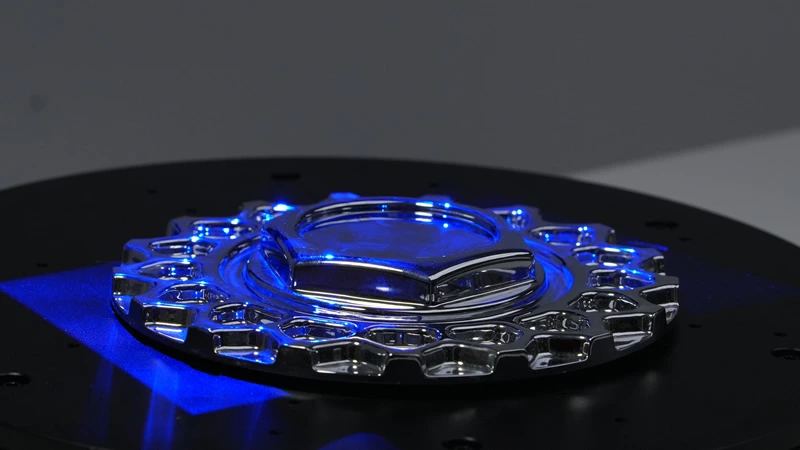

Superior Detection of Dark and Highly Reflective Parts

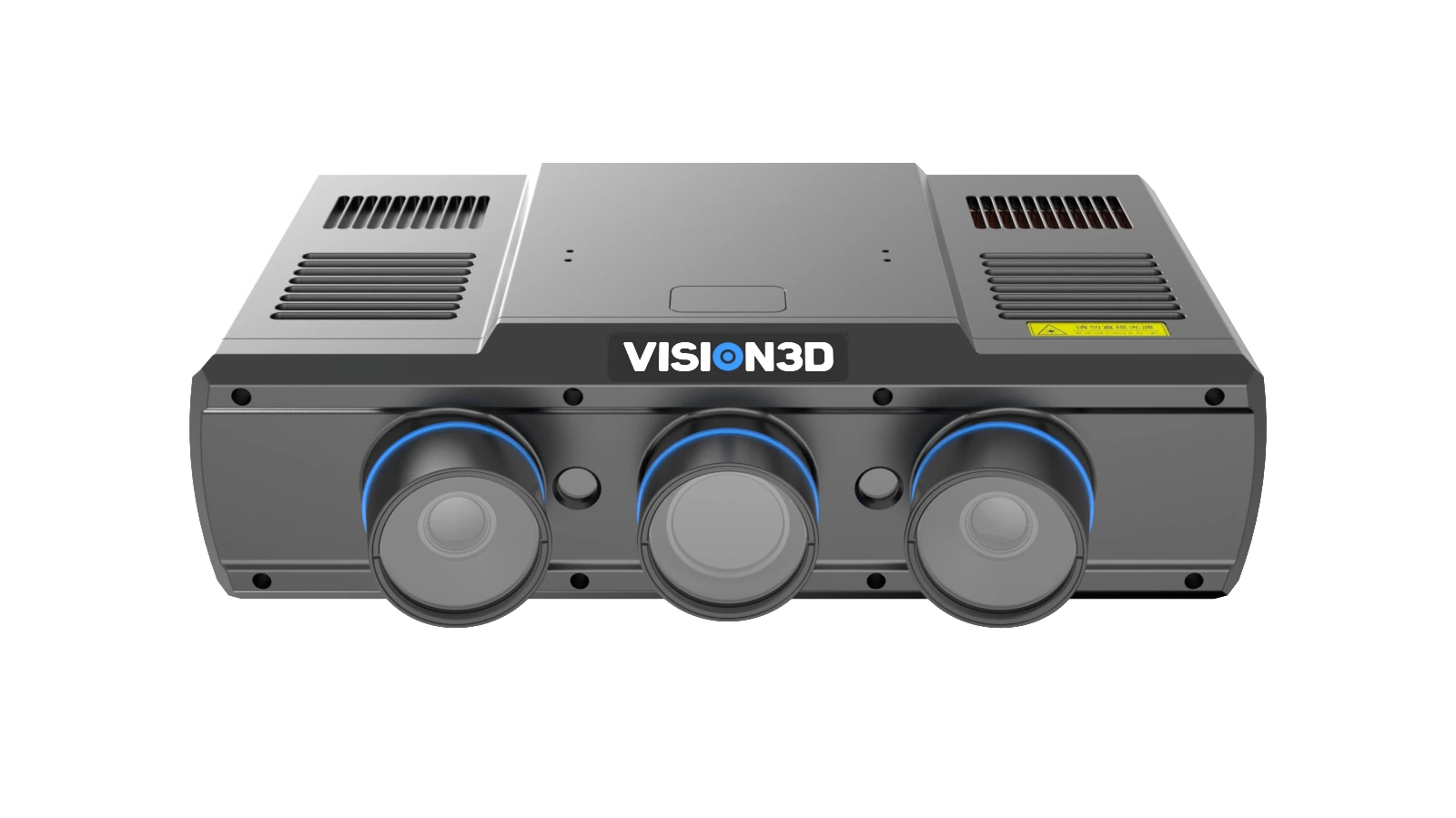

Advanced Optical Engine: Features a 1080P resolution projector equipped with the latest photosensitive sensor chips.

Optimized Imaging: Specifically optimized for challenging surfaces, ensuring complete, high-quality point cloud data even on highly reflective or deep black finishes.

PowerScan 5M Pro

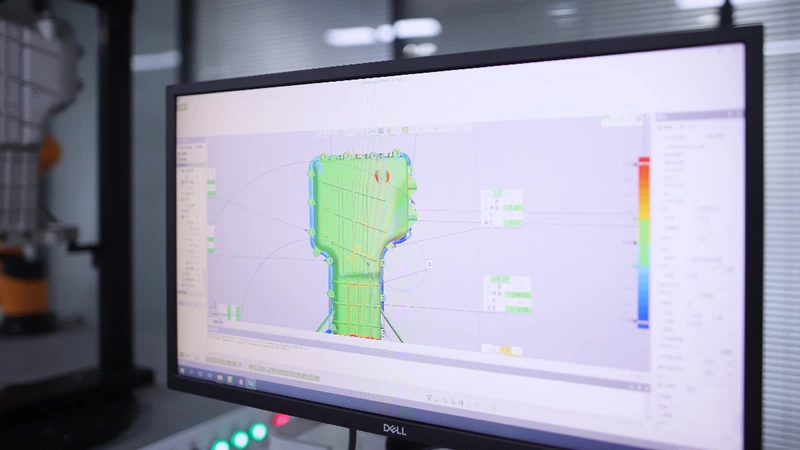

Grouped Data Alignment

Proprietary Software Integration: Powered by the self-developed VisionInspect metrology platform.

Simplified Workflow: Supports intuitive grouped data stitching for manual rotary stage measurements, transforming complex workpiece inspections into a simple and efficient process.

PowerScan 5M Pro

Photogrammetry Add-on

VMetric

Handheld Global Photogrammetry Device

VMetric 20M is engineered for the high-efficiency acquisition of high-precision 3D coordinates for photogrammetric targets on large-scale workpieces.

Exceptional Precision

With a volumetric accuracy of up to 0.015 mm/m.

Expansive Field of View

The maximum capture area reaches up to 7m*7m.

Lightweight Design, Access Anywhere

Weighing less than 0.6 kg.

Learn More

High-Resolution Photogrammetry Module

Acts as a photogrammetry expansion module for the PowerScan Pro series, working in synergy with structured light sensors. Its expansive field of view (FOV) minimizes the number of markers required and enhances stitching efficiency during the measurement process.

Capable of operating as a standalone photogrammetry system to perform high-precision 3D coordinate acquisition of markers and establish global coordinate frames, providing a reliable datum for large-scale control and stitching stability.

Reduced Marker Density & Enhanced Efficiency With its significantly larger FOV, the G400 drastically reduces the number of markers needed on-site. It mitigates stitching risks caused by marker occlusion, detachment, or uneven distribution, thereby optimizing overall measurement throughput.
Seamless Integration Transforms "dual-device workflows" into a unified system, enabling global marker acquisition and blue-light 3D reconstruction within a single device. This eliminates the need for switching between different hardware and software environments.
Automated Metrology The integrated form factor seamlessly embeds into automated measurement modules, supporting a full-link automated workflow: "Global Frame Establishment — Local High-Precision Scanning — Data Stitching."

Technical Specifications

		PowerScan 5M100 Pro	PowerScan 5M180 Pro	PowerScan 5M300 Pro
Megapixel		5MP
Optimal Measuring Area		100×60@280mm	180×150@475mm	300×200@600mm
Depth of Field		60mm	200mm	300mm
Point Distance		0.040mm	0.070mm	0.140mm
Single Measurement Accuracy		0.010mm	0.015mm	0.020mm
Volumetric Accuracy	Standard	0.010mm+0.030mm/m	0.015mm+0.030mm/m	0.020mm+0.030mm/m
	Equipped with VMetric Photogrammetry	0.010mm+0.015mm/m	0.015mm+0.015mm/m	0.020mm+0.015mm/m
	IEquipped with G400 Photogrammetry	0.010mm+0.040mm/m	0.015mm+0.040mm/m	/
Single Measurement Time		0.3s	0.2s
Net Weight		6.5kg	7kg	8kg
Size		300×210×100mm	350×240×100mm	400×240×100mm
Interface		10GbE

After-Sales Support

We offer a comprehensive after-sales support system for all PowerScan® 5M | 12M units, including a one-year warranty and prompt replacement of spare parts. Our experienced technical team is available online to provide real-time assistance for troubleshooting, calibration, and maintenance guidance. Each system is delivered with all standard accessories, such as calibration targets and connection cables, ready for immediate use. All scanners and software are fully tested and calibrated before shipment, ensuring reliable performance, easy operation, and minimal setup time—allowing you to focus on accurate and efficient inspection workflows.
