Core Technical Features

Featuring a single-frame accuracy of up to 0.005 mm, it is engineered for extreme precision, delivering unrivaled detail in every scan.

Why Choose PowerScan 12M Pro ?

Zero Detail Loss

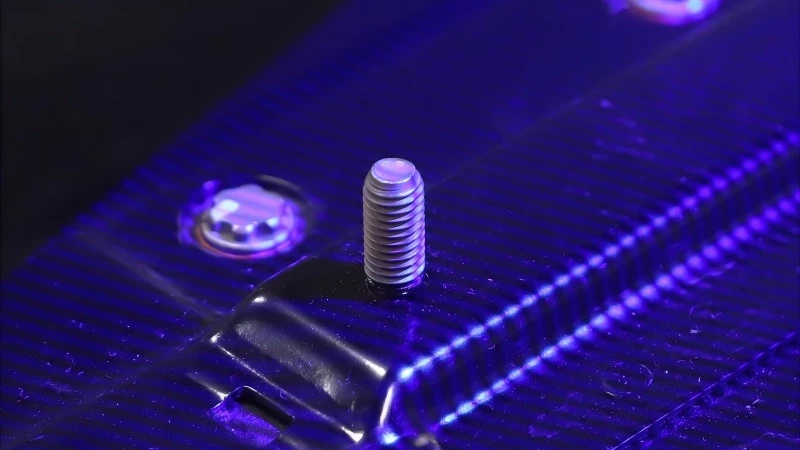

Engineered for intricate structures, the PowerScan® 12M accurately captures the 3D topography of minute or complex geometries, such as threads, deep holes, and battery box corners, ensuring no inspection blind spots.

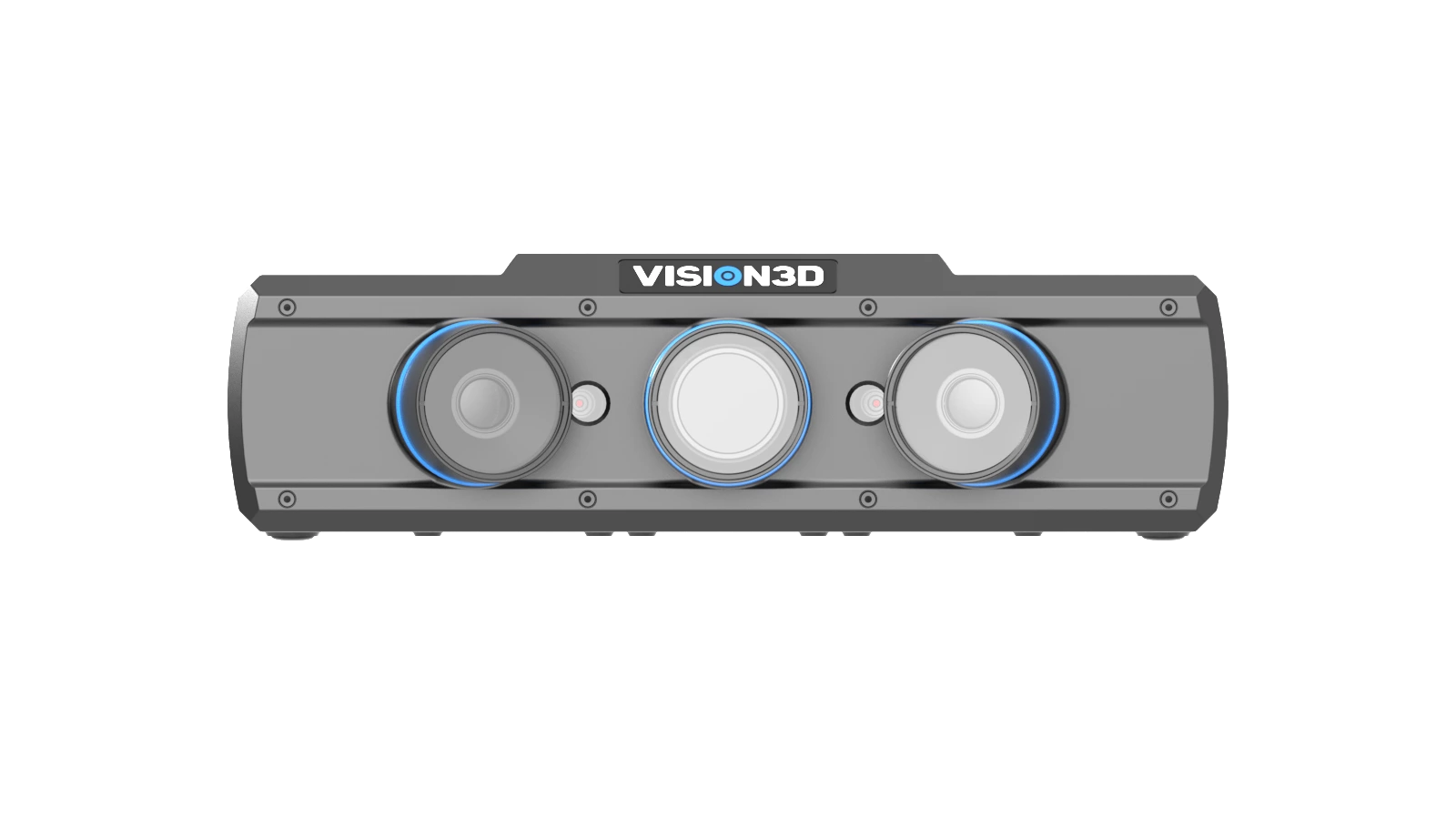

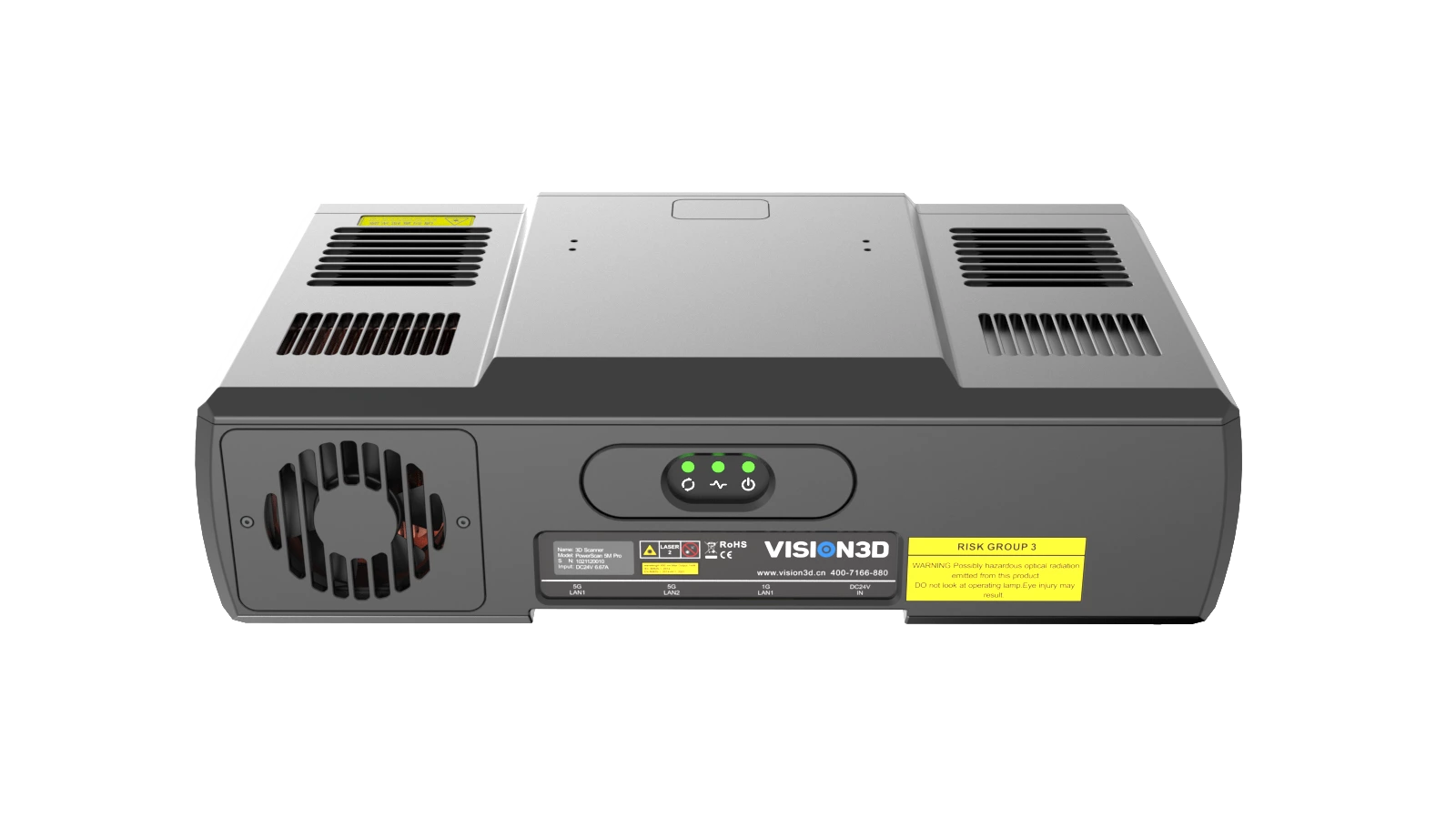

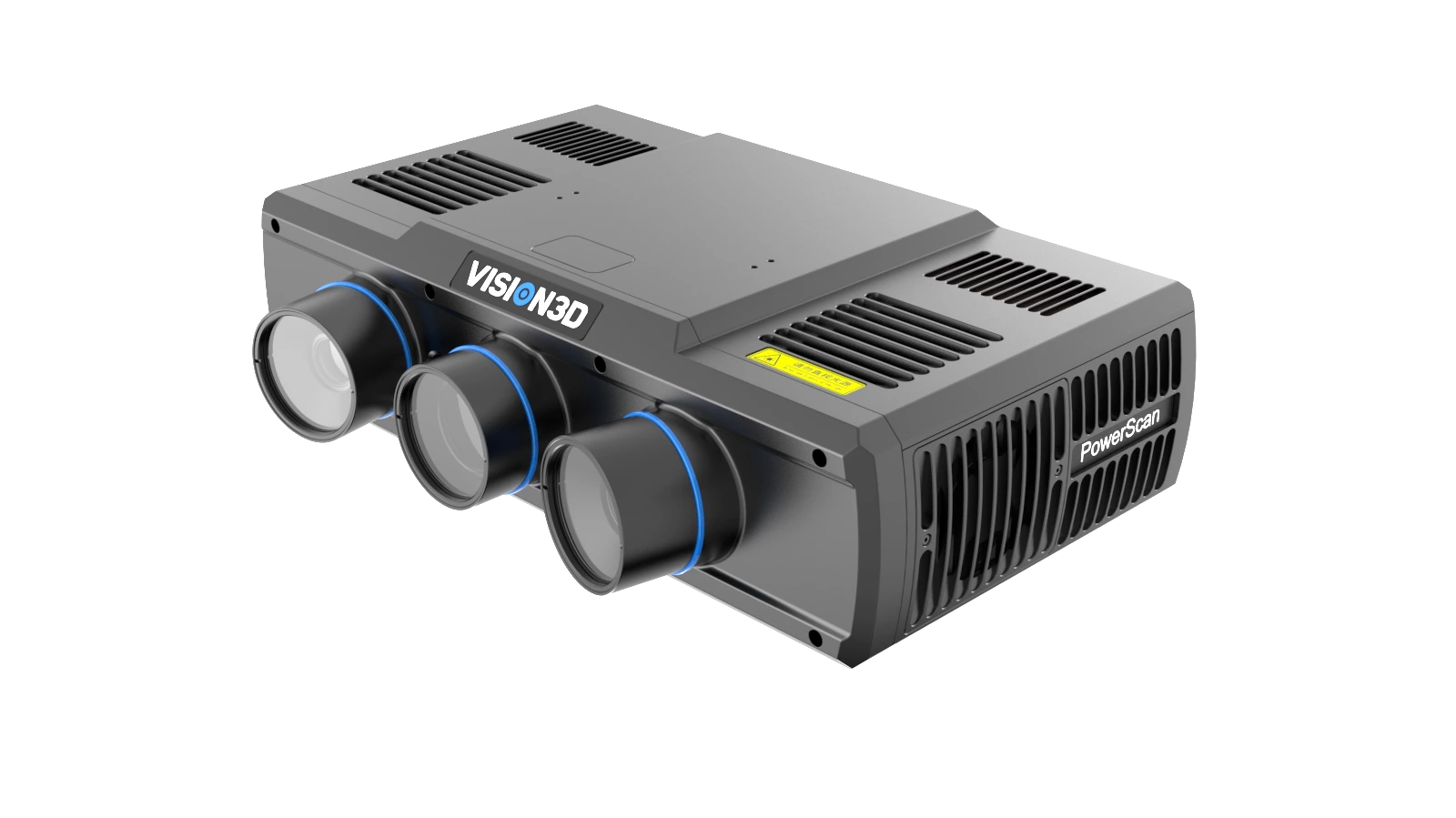

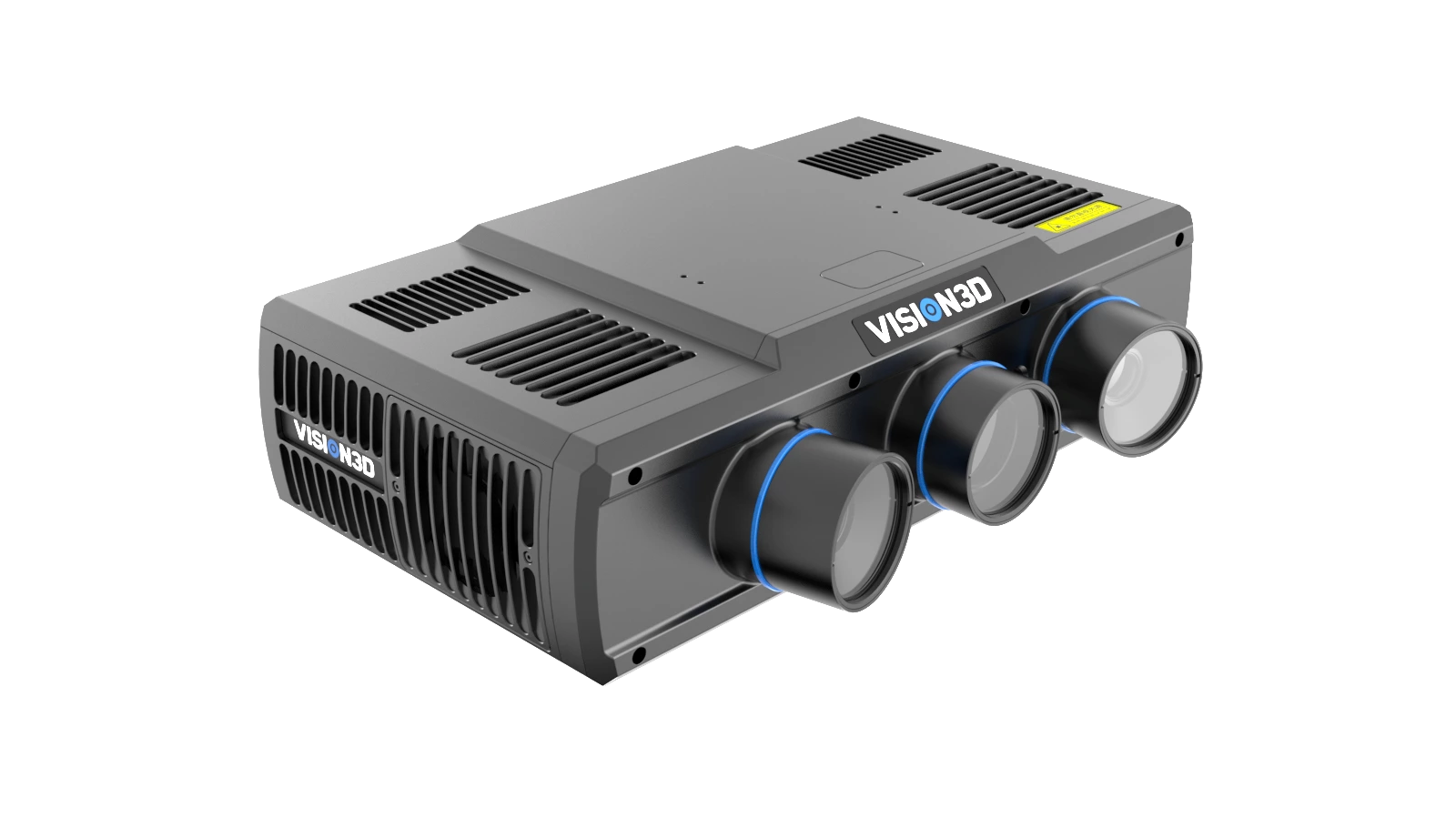

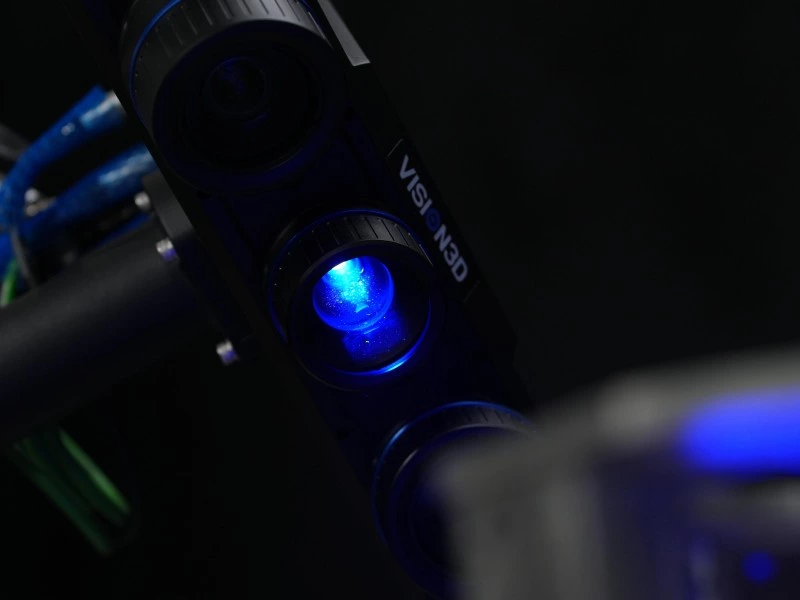

PowerScan 12M Pro

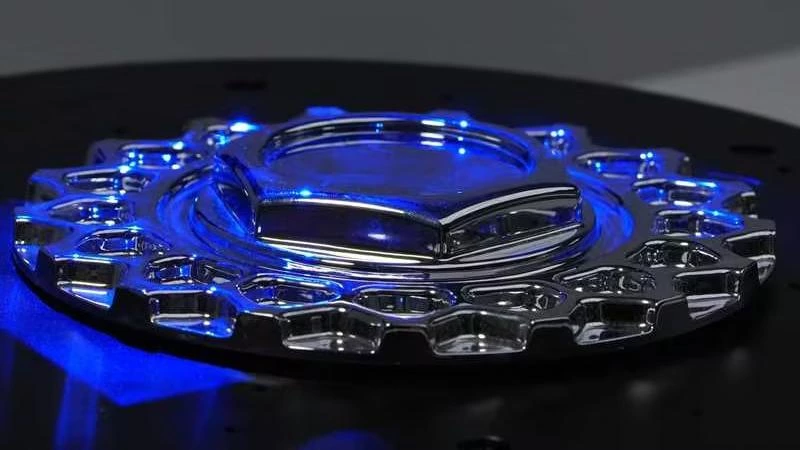

Seamless Handling of High-Reflective Surfaces

Optimized for polished metals, mirrors, and other traditionally difficult-to-measure surfaces, the system effectively suppresses glare and overexposure. This allows for the stable acquisition of complete, high-fidelity 3D point cloud data.

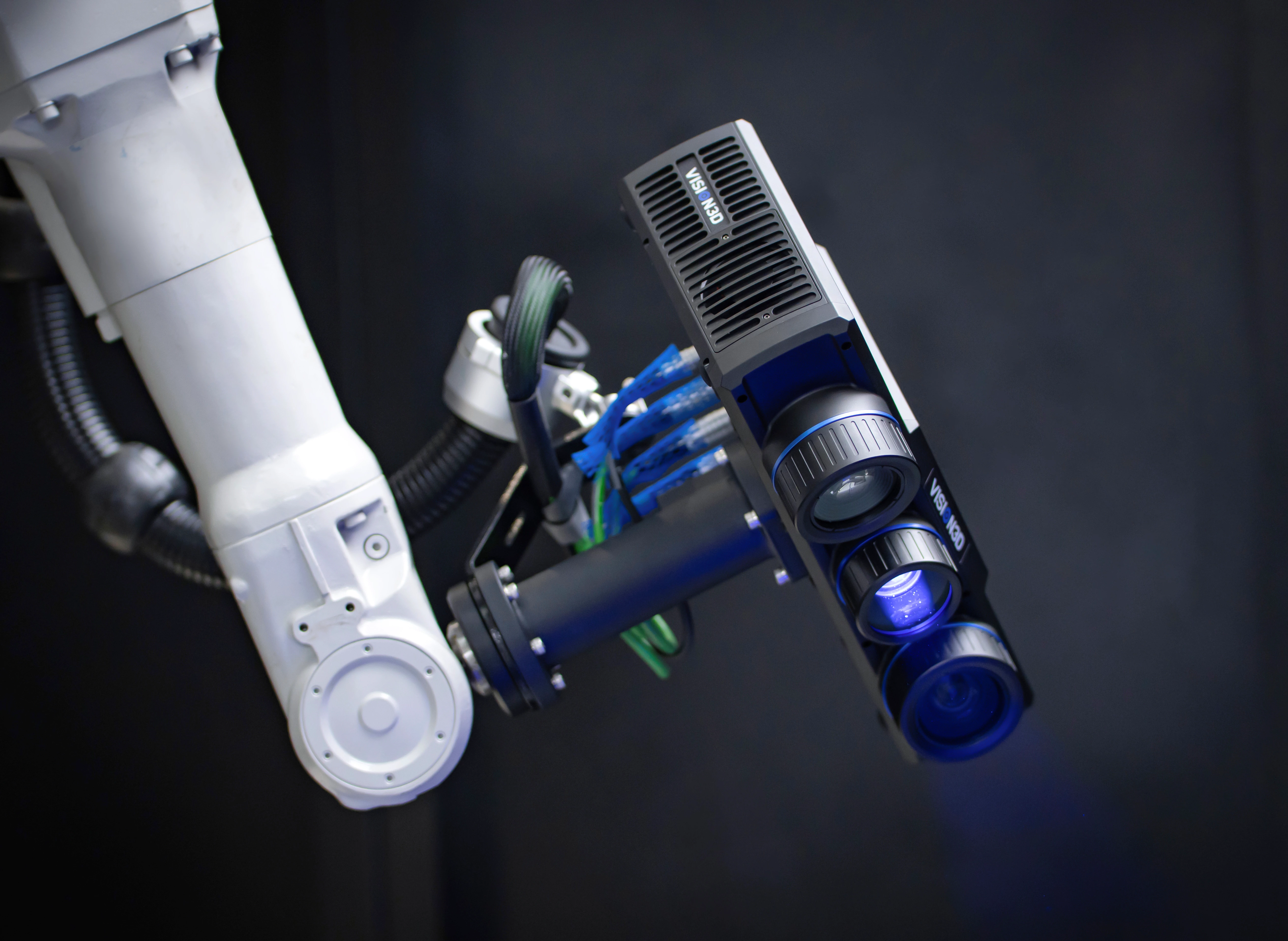

PowerScan 12M Pro

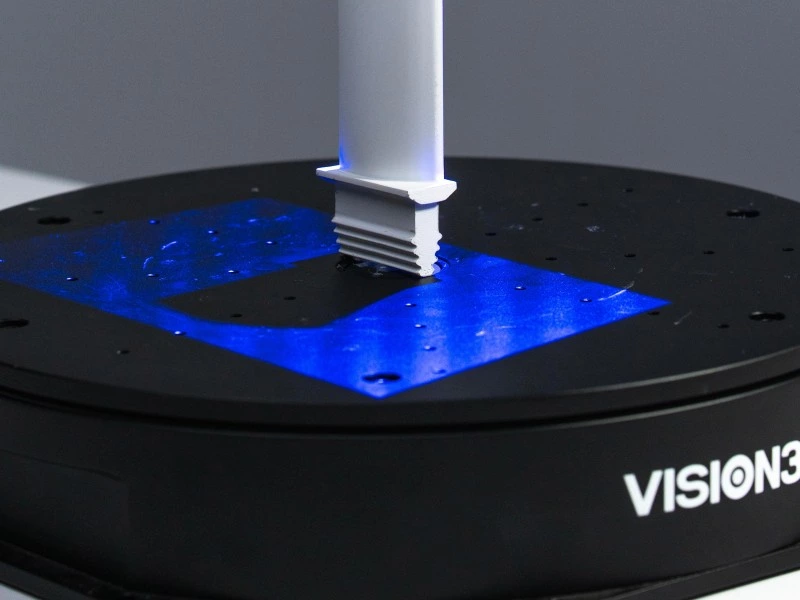

Deep Empowerment for Professional Applications

Designed to meet the high-cadence, high-precision 3D inspection needs of complex structural components, covering production stages from mold tuning and process optimization to high-volume quality control.

PowerScan 12M Pro

Photogrammetry Add-on

VMetric

Handheld Global Photogrammetry Device

VMetric 20M is engineered for the high-efficiency acquisition of high-precision 3D coordinates for photogrammetric targets on large-scale workpieces.

Exceptional Precision

With a volumetric accuracy of up to 0.015 mm/m.

Expansive Field of View

The maximum capture area reaches up to 7m*7m.

Lightweight Design, Access Anywhere

Weighing less than 0.6 kg.

Learn More

High-Resolution Photogrammetry Module

Acts as a photogrammetry expansion module for the PowerScan Pro series, working in synergy with structured light sensors. Its expansive field of view (FOV) minimizes the number of markers required and enhances stitching efficiency during the measurement process.

Capable of operating as a standalone photogrammetry system to perform high-precision 3D coordinate acquisition of markers and establish global coordinate frames, providing a reliable datum for large-scale control and stitching stability.

Reduced Marker Density & Enhanced Efficiency With its significantly larger FOV, the G400 drastically reduces the number of markers needed on-site. It mitigates stitching risks caused by marker occlusion, detachment, or uneven distribution, thereby optimizing overall measurement throughput.
Seamless Integration Transforms "dual-device workflows" into a unified system, enabling global marker acquisition and blue-light 3D reconstruction within a single device. This eliminates the need for switching between different hardware and software environments.

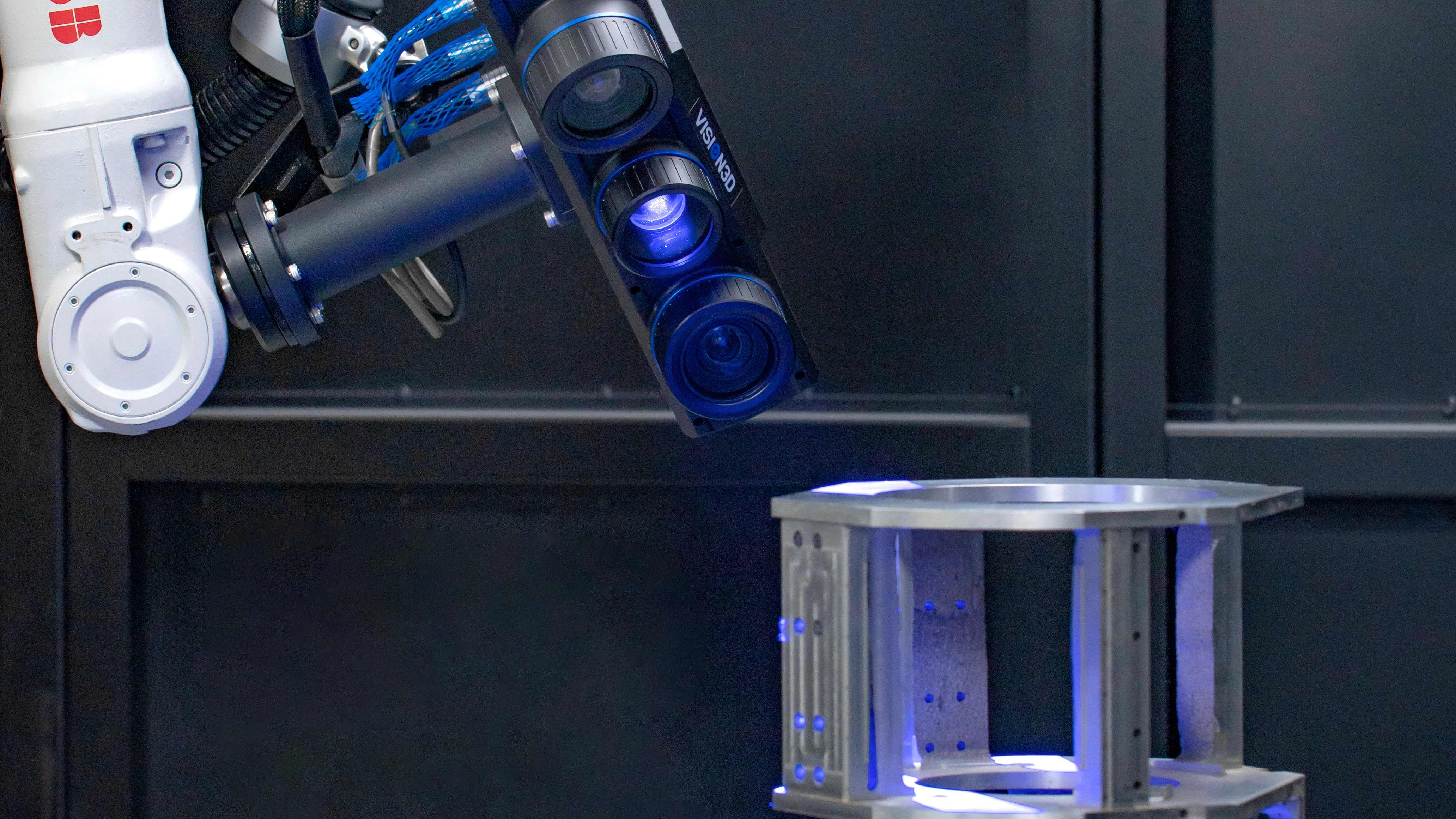

Automated Metrology The integrated form factor seamlessly embeds into automated measurement modules, supporting a full-link automated workflow: "Global Frame Establishment — Local High-Precision Scanning — Data Stitching."

Technical Specifications

		PowerScan 12M80 Pro	PowerScan 12M180 Pro	PowerScan 12M300 Pro
Megapixel		12MP
Optimal Measuring Area		80×70@375mm	180×150@475mm	300×170@510mm
Depth of Field		50mm	100mm	200mm
Point Distance		0.030mm	0.050mm	0.080mm
Single Measurement Accuracy		0.005mm	0.008mm	0.015mm
Volumetric accuracy	Standard	0.005mm+0.030mm/m	0.008mm+0.030mm/m	0.015mm+0.030mm/m
	Equipped with VMetric Photogrammetry	0.005mm+0.015mm/m	0.008mm+0.015mm/m	0.015mm+0.015mm/m
	IEquipped with G400 Photogrammetry	0.005mm+0.040mm/m	0.008mm+0.040mm/m	/
Single Measurement Time		0.4s
Net Weight₁		7kg
Size₁		350×240×100mm
Interface		10GbE
Note₁: The PowerScan 12M Pro series utilizes a standardized body structure and modular optics, delivering consistent weight with flexible FOV and precision options for versatile applications.

After-Sales Support

We offer a comprehensive after-sales support system for all PowerScan® 5M | 12M units, including a one-year warranty and prompt replacement of spare parts. Our experienced technical team is available online to provide real-time assistance for troubleshooting, calibration, and maintenance guidance. Each system is delivered with all standard accessories, such as calibration targets and connection cables, ready for immediate use. All scanners and software are fully tested and calibrated before shipment, ensuring reliable performance, easy operation, and minimal setup time—allowing you to focus on accurate and efficient inspection workflows.

After-Sales Service

Our dedicated support team ensures fast, reliable assistance and maintenance for all systems, keeping your inspection processes running smoothly.

Learn More

Become a Distributor

Join our global network and offer cutting-edge 3D vision solutions to your customers with full technical and marketing support.

Learn More

Contact Us

Reach out to our experts for product inquiries, customized solutions, or technical guidance anytime.

Learn More

PowerScan Series

AutoScan Series

VScan M Series

VMetric

3D Software

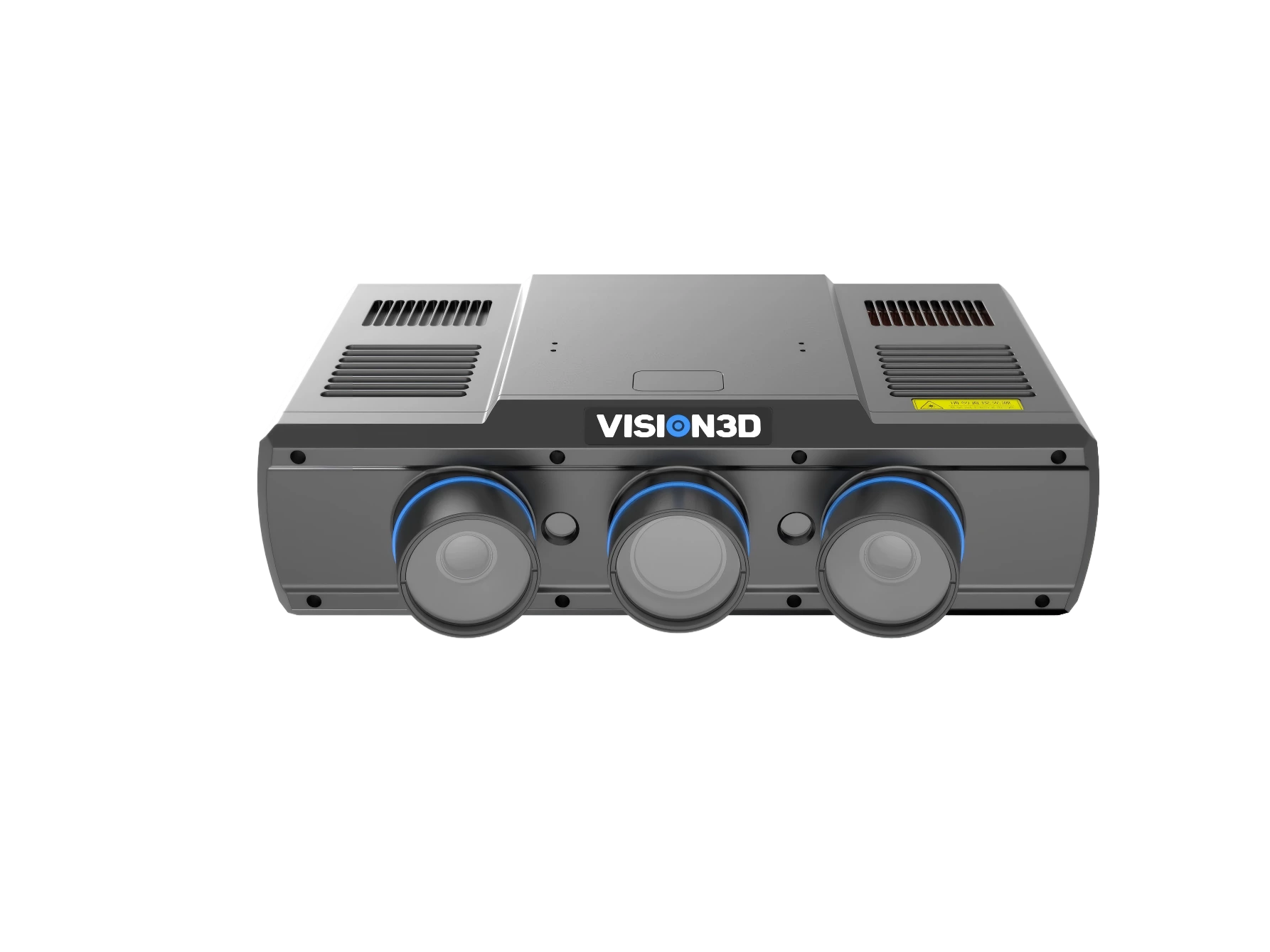

PowerScan 12M Pro
