PowerScan Series

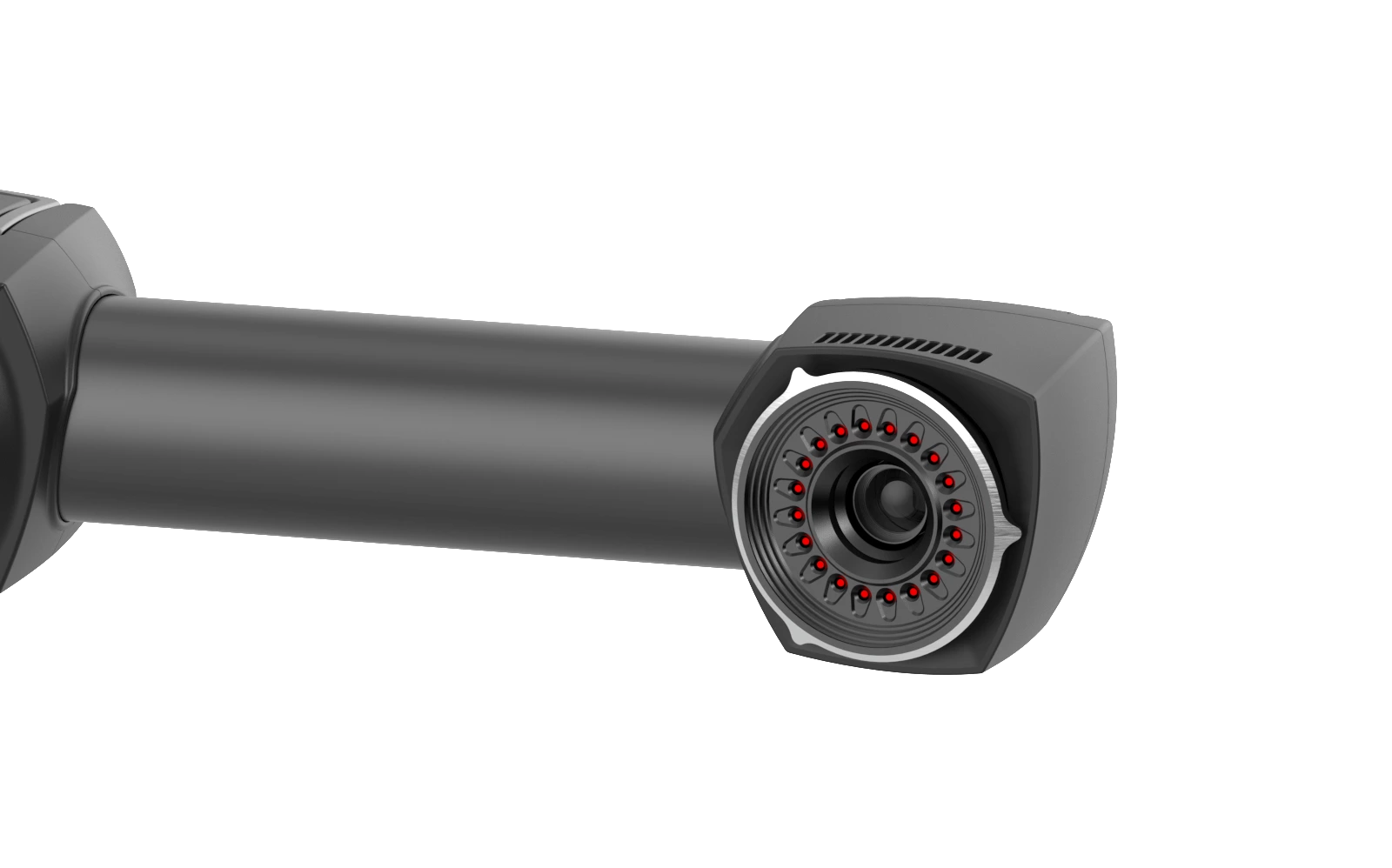

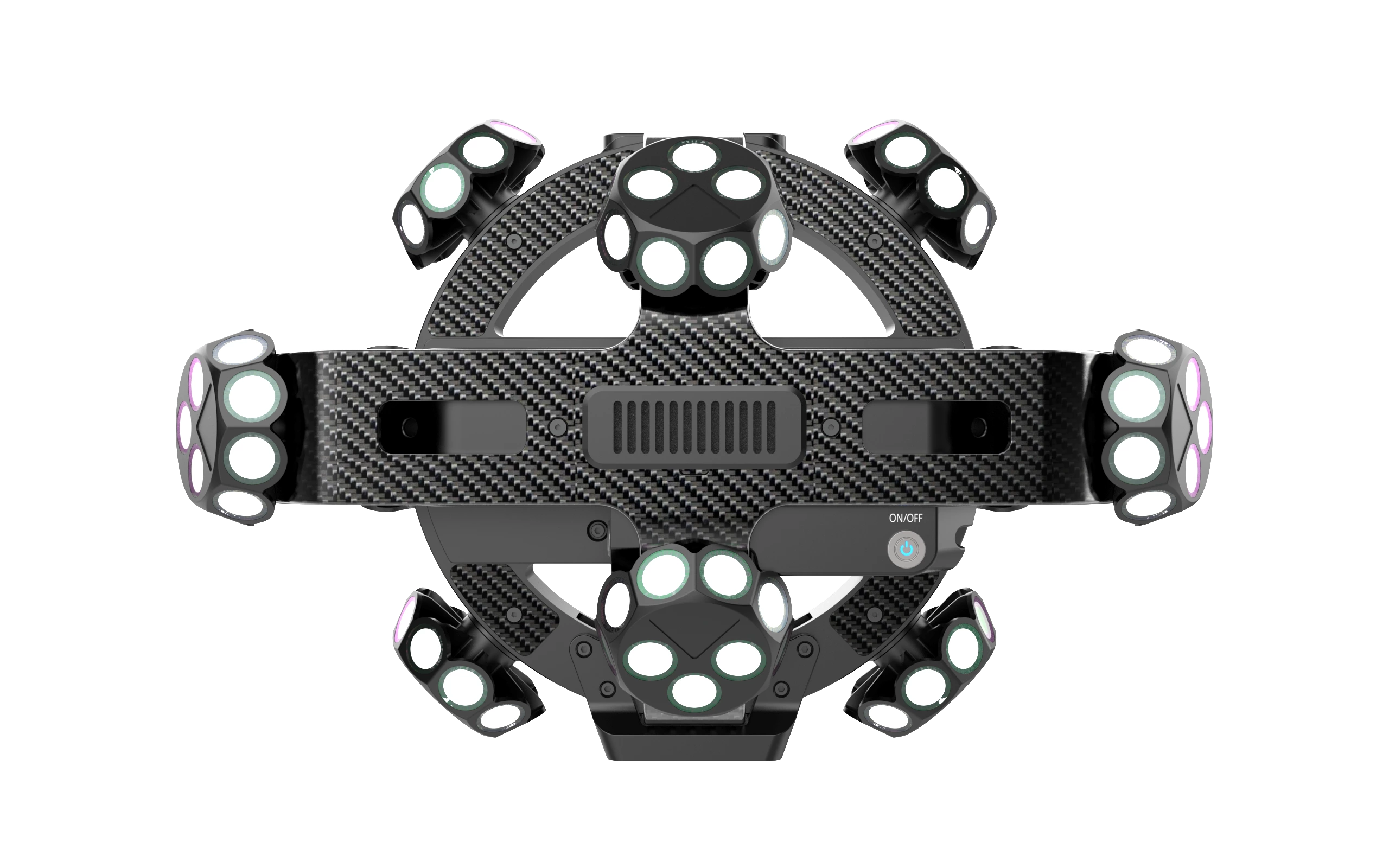

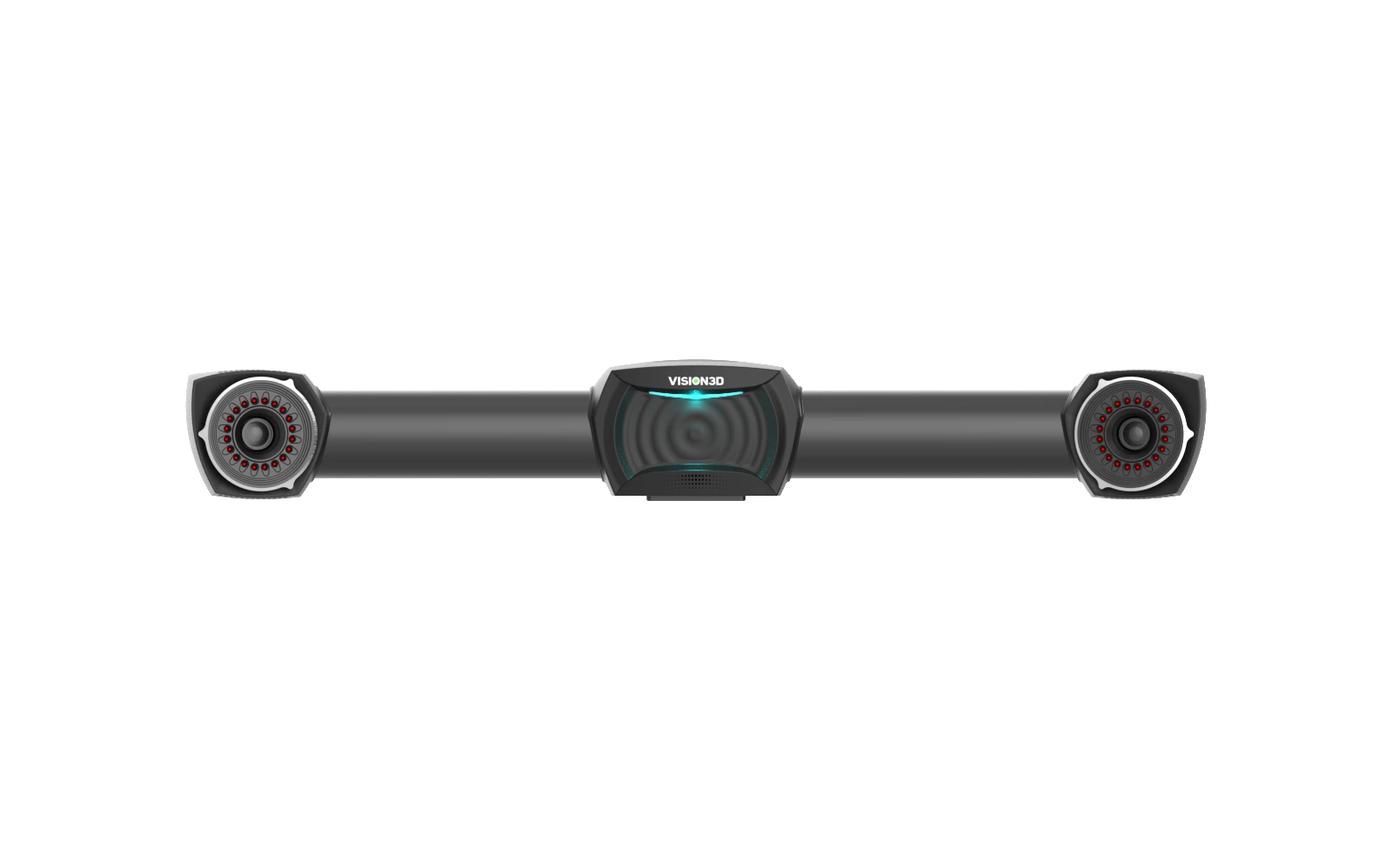

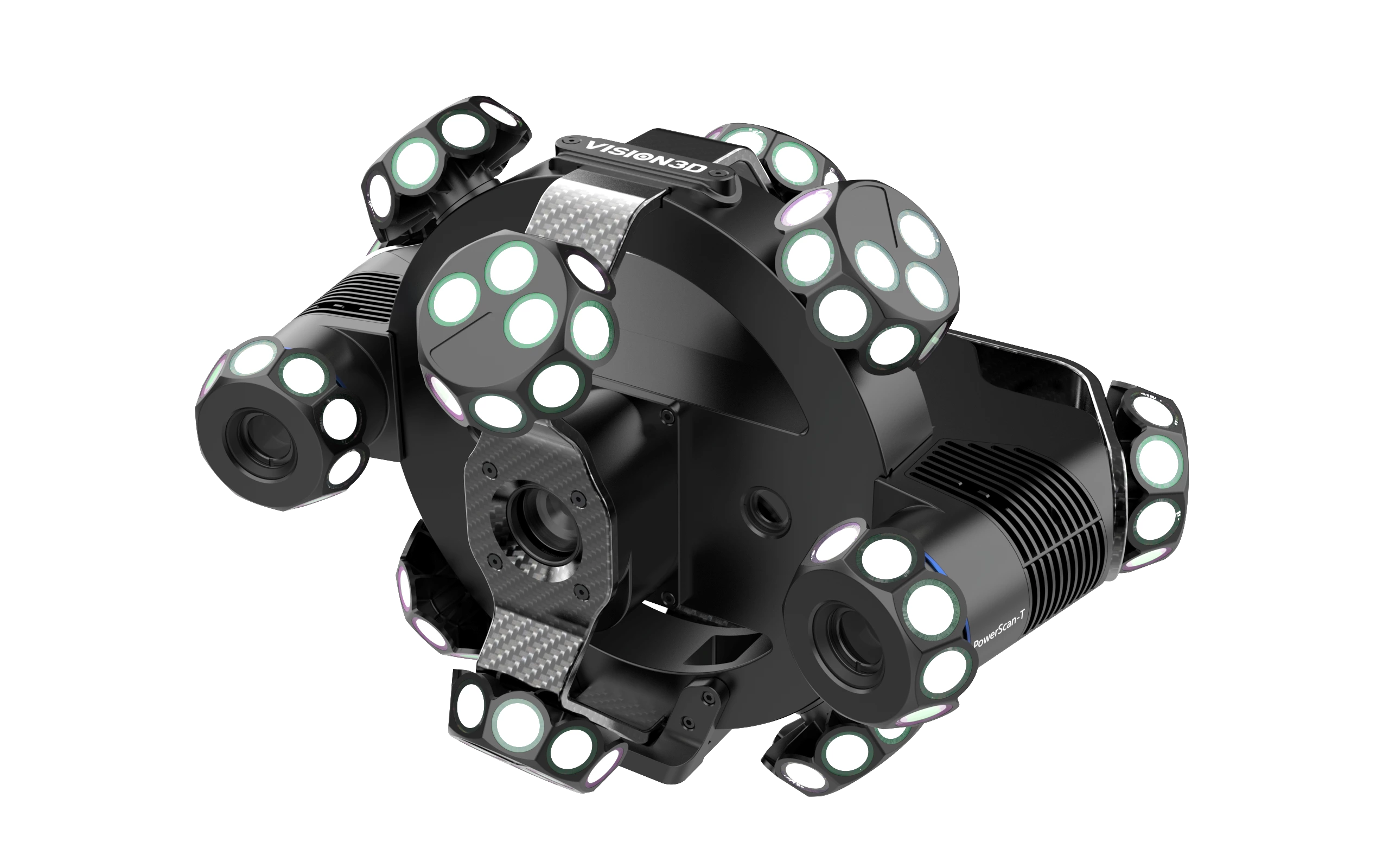

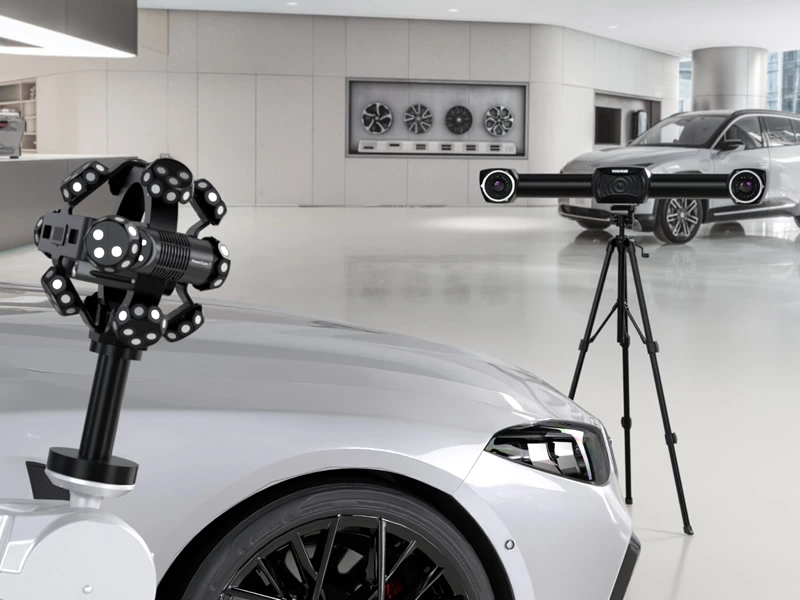

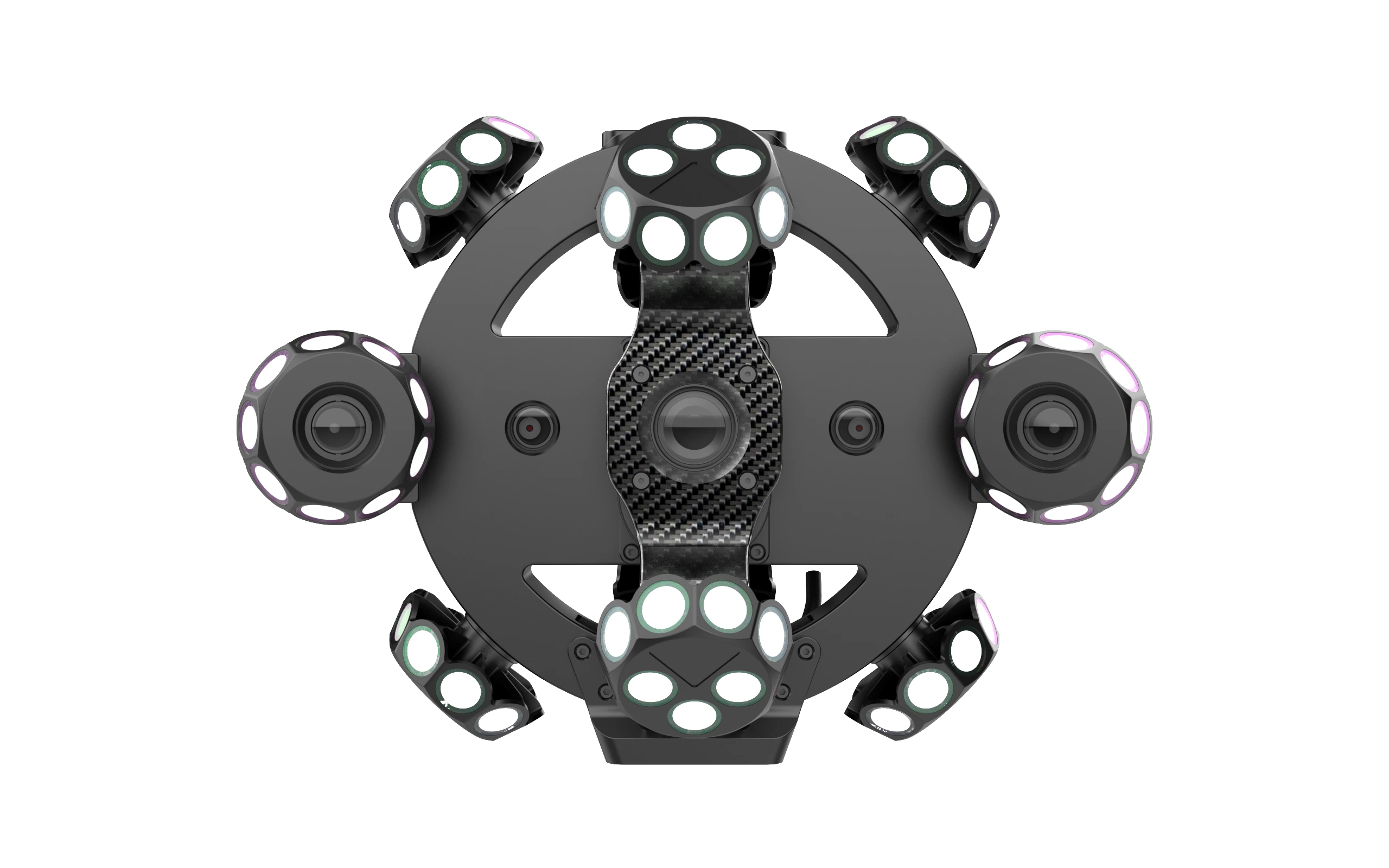

The PowerScan-T is an advanced 3D measurement solution that combines a high-precision 3D scanner with a dedicated optical tracker. Powered by intelligent optical tracking technology and ultra-high-resolution smart cameras, it delivers metrology-grade accuracy without the need for physical reference targets.
| PowerScan-T 3M | ||
|---|---|---|
|
Megapixel |
3MP |
|
|
Optimal Measuring Area |
370×270mm@570mm |
|
|
Depth of Field |
500mm |
|
|
Point Distance |
0.190mm |
|
|
Single Measurement Accuracy |
0.030mm |
|
|
Volumetric accuracy |
Standard |
0.030mm+0.030mm/m |
|
Equipped with Tracker |
10.4 m³ @3.5 m distance from tracker：0.050 mm |
|
|
28.6 m³ @ 5m distance from tracker：0.070 mm |
||
|
49.0 m³ @ 6.0 m distance from tracker：0.090 mm |
||
|
Single Measurement Time |
0.6s |
|
|
Net Weight |
5kg |
|
|
Size |
400×210×165mm3 |
|
|
Interface |
USB3.0 |
|
We offer a comprehensive after-sales support system for all PowerScan® 5M | 12M units, including a one-year warranty and prompt replacement of spare parts. Our experienced technical team is available online to provide real-time assistance for troubleshooting, calibration, and maintenance guidance. Each system is delivered with all standard accessories, such as calibration targets and connection cables, ready for immediate use. All scanners and software are fully tested and calibrated before shipment, ensuring reliable performance, easy operation, and minimal setup time—allowing you to focus on accurate and efficient inspection workflows.
Our dedicated support team ensures fast, reliable assistance and maintenance for all systems, keeping your inspection processes running smoothly.
Join our global network and offer cutting-edge 3D vision solutions to your customers with full technical and marketing support.
Reach out to our experts for product inquiries, customized solutions, or technical guidance anytime.
12MP High-resolution Sensor | Metrology-grade Precision
Ultra-high Accuracy | Ultra-fast Acquisition
