Xiaomi YU7 Blue Light 3D Metrology System for Automotive Inspection
On June 26, Xiaomi officially launched its first luxury high-performance SUV, Xiaomi YU7. During the launch event, Xiaomi highlighted key safety innovations, including an “armored cage” steel-aluminum hybrid body structure and 2200 MPa ultra-high-strength steel, setting a new benchmark for vehicle safety performance.
Behind every published strength figure and structural innovation lies a demanding manufacturing process where dimensional consistency, assembly accuracy, and inspection stability directly affect final vehicle quality. In modern EV manufacturing, advanced automotive metrology systems have become essential for maintaining production efficiency and full-dimensional quality control.
As vehicle body structures become more integrated and lightweight, manufacturers face increasing challenges in automotive dimensional inspection, battery tray verification, and die-cast structural measurement. This places higher requirements on optical 3D measurement technology, automated inspection workflows, and production-line scanning efficiency.
As a provider of automated blue-light 3D scanning and measurement solutions, VISION3D participated in production inspection for Xiaomi YU7, supporting dimensional verification and quality inspection throughout key manufacturing stages.
Using non-contact blue light 3D metrology technology, VISION3D helped establish a more efficient and stable automotive inspection workflow capable of supporting complex geometry inspection, automated deviation analysis, and intelligent quality verification under demanding production conditions.
A Targeted Inspection Solution for Two Core Components
VISION3D delivered a customized, high-efficiency, and high-precision inspection solution for two critical areas of the Xiaomi YU7 program:
1.Integrated die-cast rear floor (post-casting)
2.Battery tray
Both applications required high-speed automotive inspection workflows capable of balancing dimensional accuracy, production takt time, and shop-floor stability.
Inspection Challenges in EV Manufacturing
Compared with conventional automotive components, integrated die-cast structures and CTB battery tray designs introduce more demanding inspection requirements for automotive manufacturers.
Battery tray (CTB architecture): measurement bottlenecks around threaded holes, mounting interfaces, and other complex structural features requiring high-density point-cloud acquisition and stable dimensional analysis.
Die-cast rear floor: the integrated die-casting process introduces higher process variability, reflective machined surfaces, and tighter dimensional control requirements. Combined with fast production takt time, traditional contact measurement methods often struggle to balance inspection speed and accuracy.
In practical automotive production environments, these challenges typically translate into three major inspection pain points:
- Complex surfaces and structural features are difficult to measure consistently
- Inspection throughput is difficult to synchronize with production-line takt time
- Online measurement performance can be affected by vibration, temperature fluctuation, and ambient lighting interference
Breaking Inspection Bottlenecks with Blue Light 3D Metrology
To address these inspection challenges, VISION3D implemented a non-contact blue-light 3D metrology solution combining optical hardware, automated inspection software, and intelligent point-cloud processing algorithms to establish a high-speed and high-precision automotive measurement workflow.

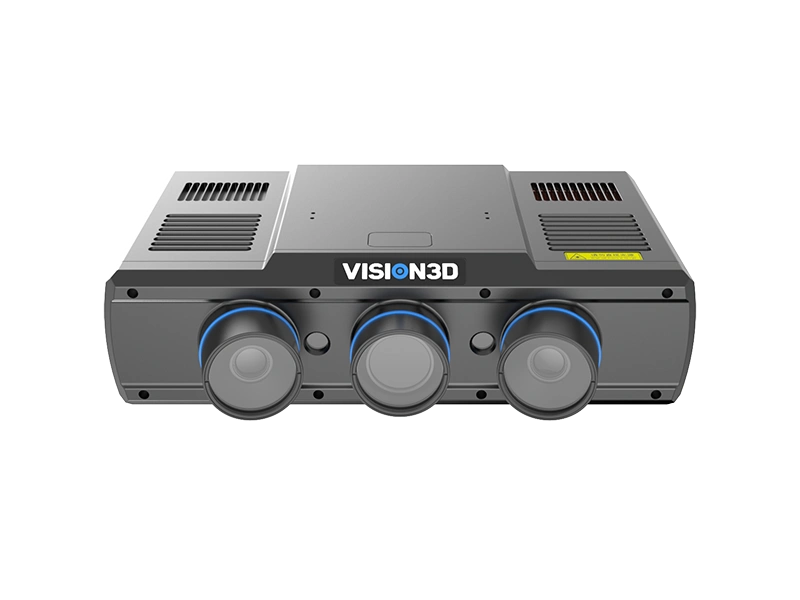

PowerScan Blue-Light Sensor Head
Using multi-view matching and adjustment optimization algorithms, combined with CPU/GPU dual-engine acceleration, the PowerScan system helps reduce measurement interference caused by:
- Reflective aluminum alloy surfaces
- Low-reflectivity coatings
- Black electrophoretic paint surfaces
This significantly improves point-cloud quality, surface detail capture, and measurement stability in complex automotive inspection environments.
VisionInspect Automated Measurement Software
VisionInspect supports both marker-based stitching and markerless intelligent stitching. Through feature matching and high-precision point-cloud alignment algorithms, the software efficiently merges multi-view scan data for downstream dimensional analysis.
Combined with ICP optimization and global constraint algorithms, the system can rapidly generate high-accuracy point clouds suitable for:
- CAD comparison
- Automated deviation analysis
- Automotive dimensional inspection
- Surface geometry verification
- Production quality analysis
Key System Highlights
Dual-Robot Collaborative Scanning for Full Coverage
Two robot arms equipped with PowerScan sensor heads flexibly capture difficult inspection regions such as deep cavities, bottom structures, and complex geometry areas, helping minimize scanning blind spots during automotive inspection.
Single-shot scan time reaches 0.2 seconds, supporting high-speed production-line takt time requirements in EV manufacturing environments.
Fully Automated Measurement and Intelligent Full-Dimension Control
From part loading to report generation, the inspection workflow is designed for highly automated operation, including:
- Automatic alignment to CAD models
- Automated deviation analysis
- Automated inspection report generation
- Intelligent visualization of key dimensional deviations
This helps improve inspection consistency while supporting faster production decision-making.
Robust Protection Against Environmental Interference
To ensure stable automotive measurement performance under demanding shop-floor conditions, the system incorporates:
- Temperature-controlled room design
- Light-blocking protection
- Anti-vibration foundation engineering
These measures help maintain measurement accuracy and operational stability in complex manufacturing environments.
Advantages of Blue Light 3D Measurement in Automotive Manufacturing
Blue light optical 3D measurement technology is increasingly used in EV manufacturing because it combines non-contact scanning, high-speed acquisition, and full-surface dimensional analysis within automated inspection workflows.
- Non-contact measurement avoids surface damage during inspection
- High scanning speed improves inspection throughput
- High-resolution data supports complex automotive geometry analysis
- Blue light technology provides strong resistance to ambient light interference
- Suitable for integrated die-cast structures and battery system inspection
- Supports automated automotive quality control and smart manufacturing workflows
End-to-End Delivery for Automotive Inspection Projects
Driven by in-house optical measurement technology and scenario-based engineering experience, VISION3D supported the Xiaomi YU7 program across multiple implementation stages:
- Requirement response
- Equipment selection
- System integration
- Software linkage
- Measurement accuracy verification
- On-site protective engineering
These efforts help improve inspection efficiency, dimensional consistency, and manufacturing quality assurance for Xiaomi YU7 production.
Automotive 3D Inspection Solutions for EV Manufacturing
VISION3D provides blue light 3D metrology systems and automated optical inspection solutions for automotive manufacturing, EV battery systems, integrated die-cast structures, and intelligent quality control applications.
Our solutions support automotive dimensional inspection, CAD deviation analysis, gap and flush inspection, reverse engineering, and automated production-line quality verification for modern smart manufacturing environments.
Explore Vision3D Automotive 3D Inspection Solutions
FAQ
What is a blue light 3D metrology system?
A blue light 3D metrology system is a non-contact optical measurement solution that captures high-accuracy surface geometry data using structured blue light projection and industrial imaging technology.
Why is blue light 3D scanning used in EV manufacturing?
Blue light scanning provides fast acquisition speed, stable dimensional inspection, and high-resolution data capture for complex automotive structures and battery systems.
What are the advantages of non-contact automotive inspection?
Non-contact optical inspection improves inspection efficiency, reduces surface damage risk, and supports full-surface dimensional analysis for complex automotive components.
Can blue light metrology systems support integrated die-cast inspection?
Yes. Blue light 3D measurement systems are widely used for integrated die-cast structure inspection because they can efficiently capture large, complex geometries with high accuracy.
What is CAD deviation analysis in automotive inspection?
CAD deviation analysis compares scanned measurement data with original CAD models to identify dimensional variation, manufacturing deviation, and assembly consistency issues.
