VISION3D Supports the Intelligent Manufacturing of Xiaomi YU7, Automated Blue-Light Measurement Enables Smooth Driving

Xiaomi YU7, Xiaomi’s first premium high-performance SUV, was officially launched on June 26. When Lei Jun announced at the launch event that the vehicle’s Armor Cage Steel-Aluminum Hybrid Body and 2200MPa Xiaomi Ultra-High-Strength Steel set new industry safety standards, this innovation of a "mobile safety fortress" has quietly extended to every detail of the manufacturing chain.

As Xiaomi’s first premium high-performance SUV, the YU7’s safety edge is reflected not only in excellent cabin space retention and numerous strict verifications during crash tests, but also behind ultra-precision manufacturing processes. Every figure presented at the launch points to one core principle: fulfilling safety commitments begins with extreme rigor in quality inspection.

As a supplier of automated blue-light scanning and measurement solutions, Weijing 3D has deeply participated in the production inspection of Xiaomi YU7 to safeguard the quality of this premium high-performance SUV.

Weijing 3D customized an efficient, accurate and full-process intelligent inspection solution for two core components of Xiaomi YU7: the die-cast rear floor and battery tray.

These two key parts pose stringent inspection challenges. Adopting the CTB structure, the battery tray has measurement bottlenecks such as threaded holes and other complex features. The integrated die-cast rear floor uses a brand-new integrated die-casting process, which is greatly affected by process fluctuations, reflective machined holes and fast production line takt time, making it difficult for traditional inspection methods to balance efficiency and precision. Both components share three major pain points: difficult inspection of complex surfaces and intricate features, poor adaptability to production line takt time, and strong interferences including temperature, vibration and ambient light during inline measurement.

Weijing 3D breaks through bottlenecks with blue-light non-contact measurement technology. By integrating hardware innovation and software ecosystem, it delivers dual-dimensional solutions to inspection challenges and builds a fully automatic high-precision closed-loop inspection system.

PowerScan Series Blue-Light Sensors: Adopt triple-view matching technology combined with adjustment optimization algorithms and dual CPU/GPU acceleration engines. They eliminate interferences such as light reflection from aluminum alloys and light absorption by black electrophoretic paint to improve point cloud quality.

VisionInspect Automated Measurement Software: Supports both marker-based stitching and marker-free intelligent stitching simultaneously. It achieves accurate multi-view data registration via feature matching and point cloud alignment algorithms, and generates high-precision point clouds rapidly with ICP optimization and global constraint algorithms.

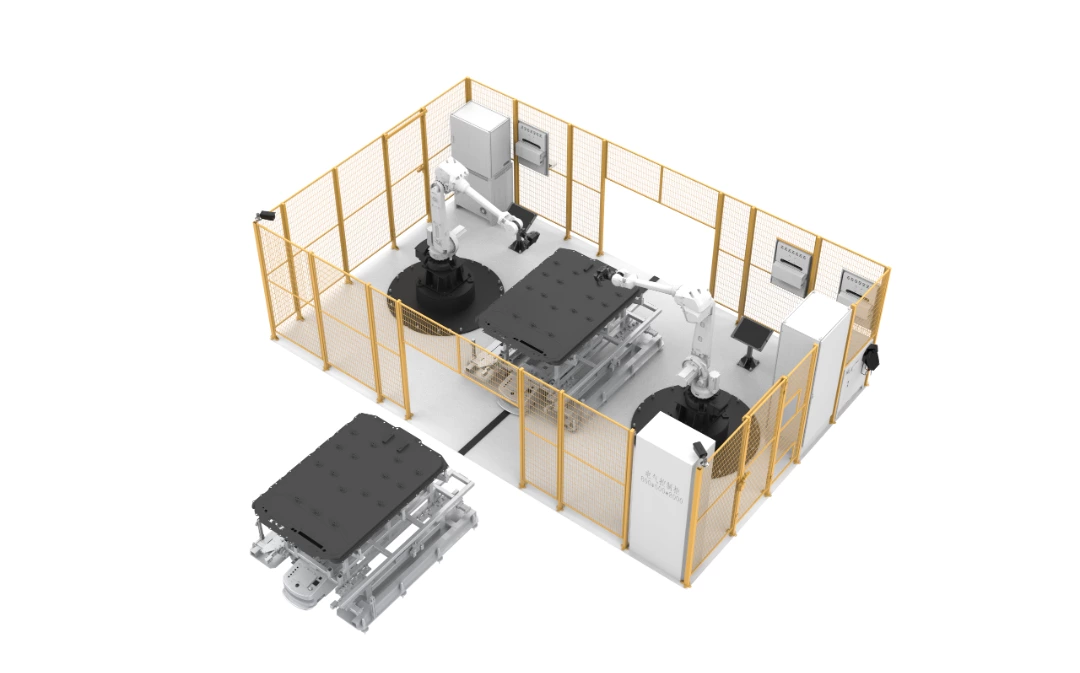

Dual-Arm Cooperative Scanning for Full Coverage of Feature Blind Zones
Dual robotic arms equipped with PowerScan blue-light sensors flexibly reach hard-to-access areas such as deep cavities and bottom surfaces. A single scan takes only 0.2 seconds to match the production line takt time.

Fully Automated Measurement & Intelligent Full-Dimensional Control
Unmanned full workflow from workpiece loading to report generation. The system automatically aligns CAD models, automates deviation analysis and report generation across the whole process, and visualizes deviations of critical dimensions.

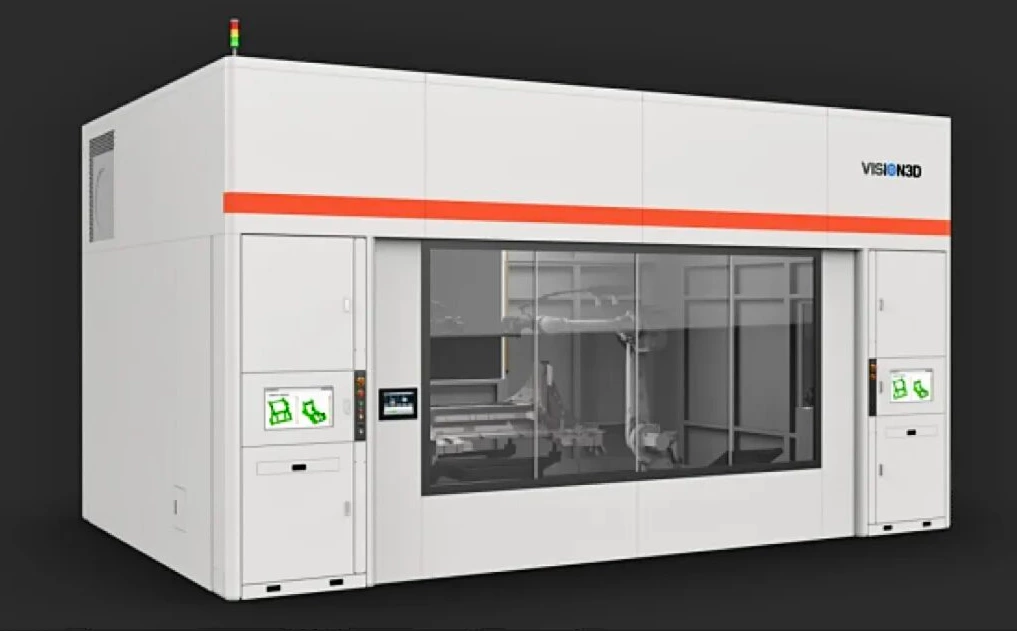

Robust Shielding Against Environmental Interferences
Equipped with constant-temperature enclosures, light-shielding barriers and seismic-resistant foundation design to guarantee stable measurement performance under complex working conditions.

Driven by self-developed technologies and scenario-based innovation, Weijing 3D provides full support covering project demand response, equipment selection, system integration, software linkage, measurement precision verification and on-site protection, enabling Xiaomi YU7 to achieve synchronous improvement in intelligent manufacturing efficiency and product quality.
